AV2000

Global digital transformation is driving rapid growth in data center compute, networking, and storage demands. Modern workloads increasingly depend on GPUs to deliver scalable, high-performance processing for AI, HPC, cloud services, and 5G applications. As data volumes grow and workloads diversify, data centers must adopt GPU-accelerated architectures to meet performance, latency, and efficiency requirements.

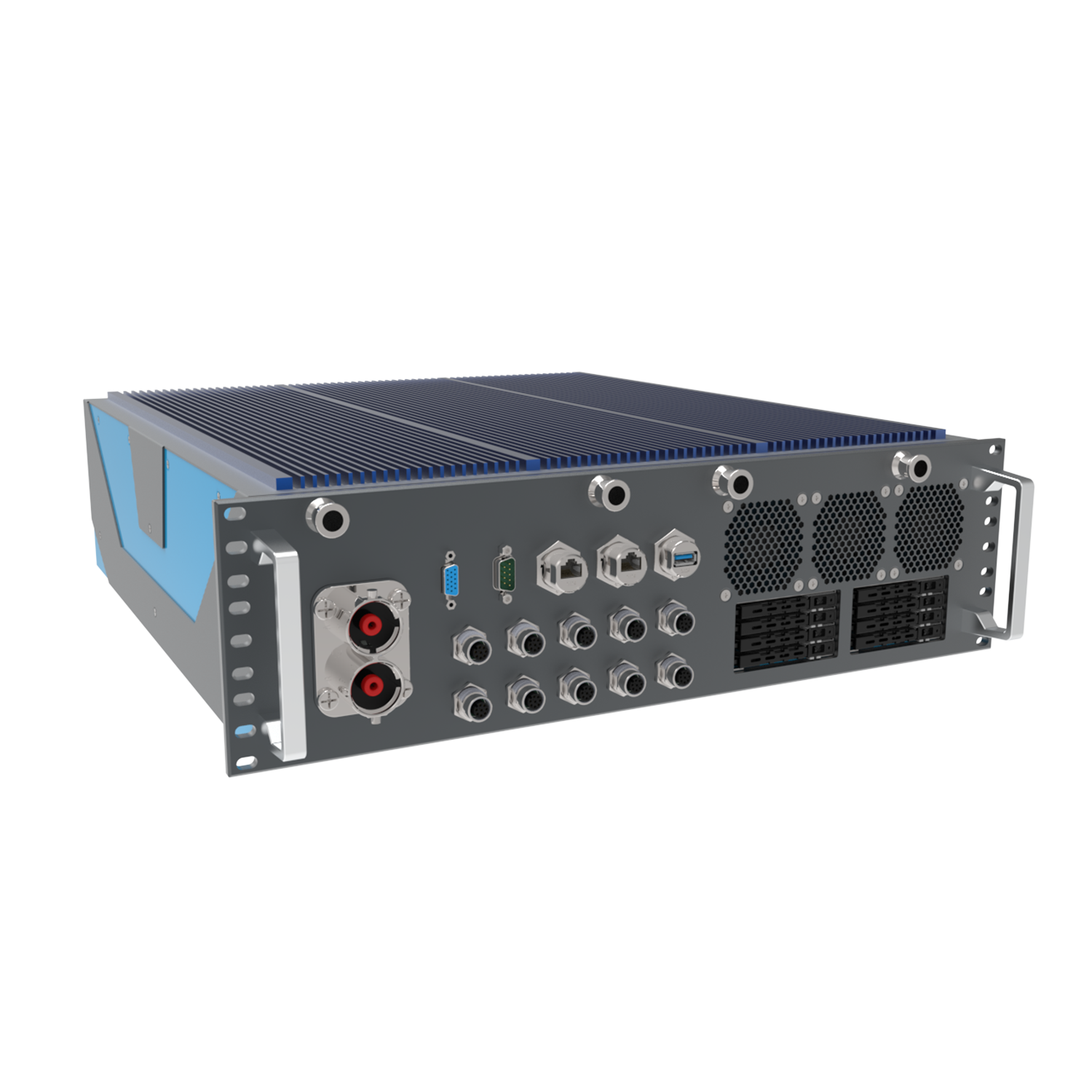

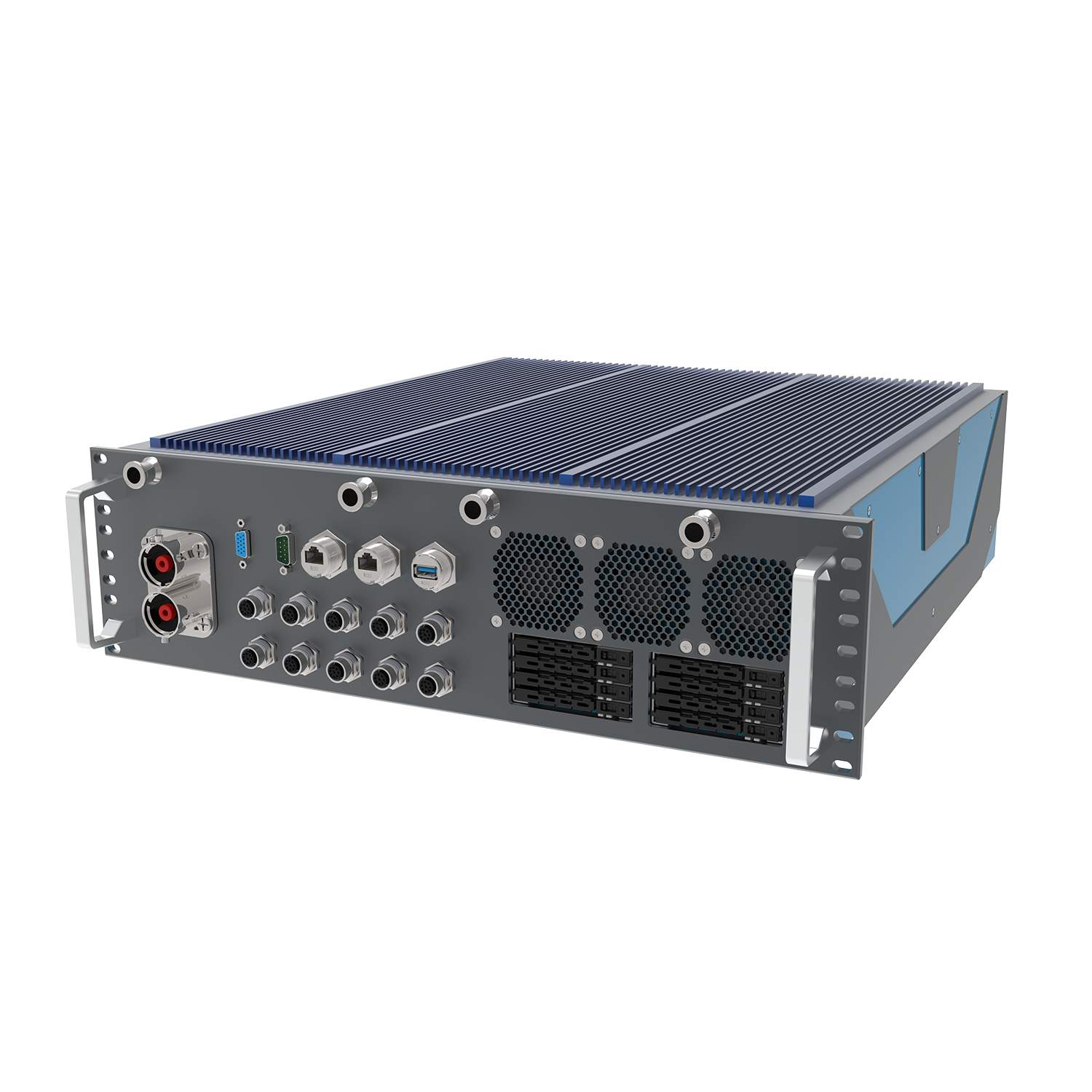

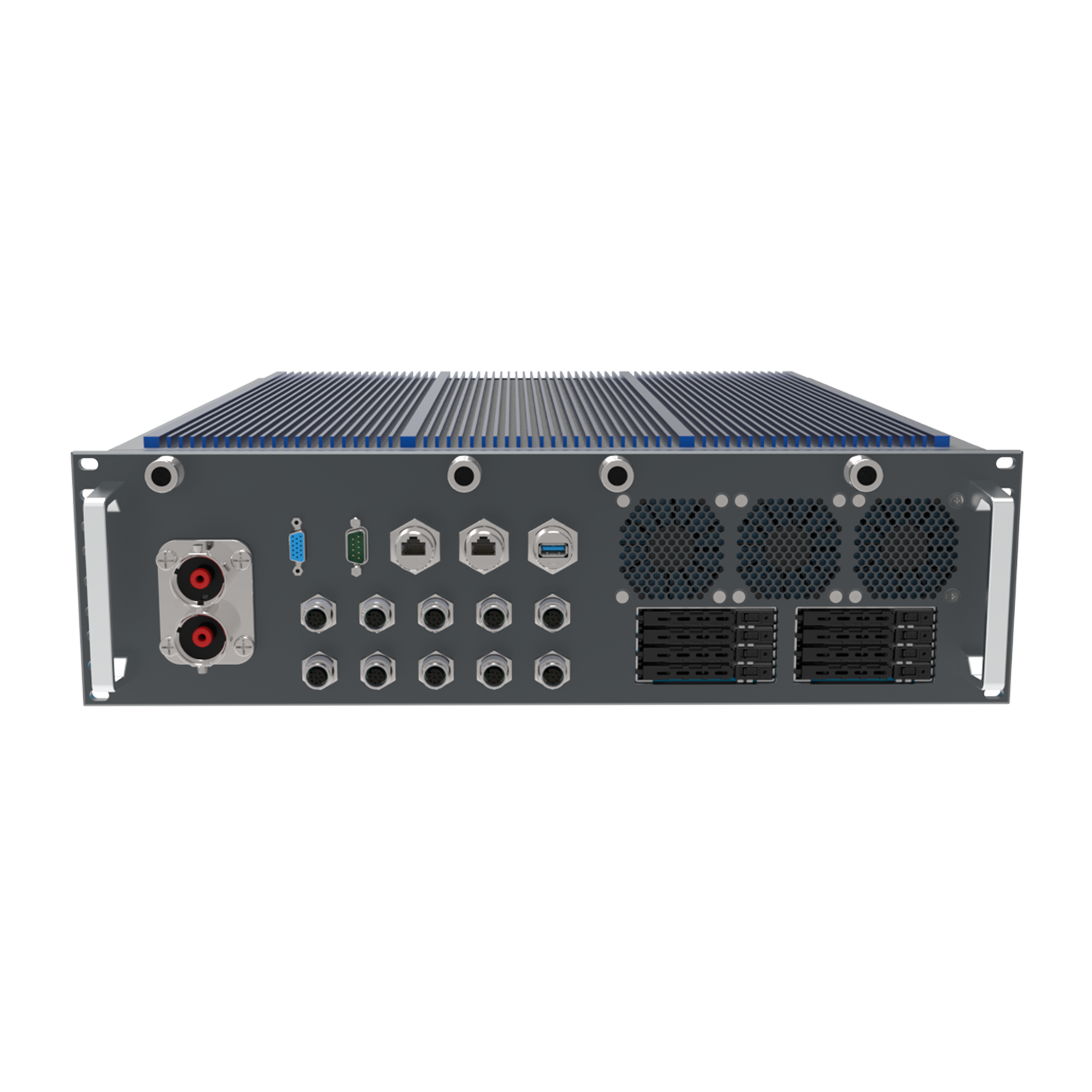

7StarLake AV2000 Conduction Liquid Cooled AI Inference GPU Server is powered by dual Intel® Xeon® 6 6760P Granite Rapids-SP processors (64 cores, 128 threads each) and NVIDIA RTX PRO™ 6000 Blackwell GPUs with 24,064 CUDA cores and 96GB of GDDR7 memory. The system is configured with 2TB Gen 4 NVMe U.2 storage (RAID 1) and 32TB SATA SSD storage (RAID 10), delivering a high-performance foundation for data-centric workloads spanning multi-cloud environments and intelligent edge deployments.

The AV2000 delivers consistent, high-throughput AI inference for machine learning and deep learning applications. Its balanced CPU, GPU, and expansion capabilities make it a ruggedized, versatile platform for demanding edge AI and data center inference workloads.

Featuring an advanced conduction liquid-cooling architecture, the AV2000 uses a precision “gun-drilled” thermal design with ten cooling pipes (each 10 mm × 10 mm × π × 800 mm), enabling efficient heat dissipation of up to 15 kW and ensuring sustained performance under extreme workloads.

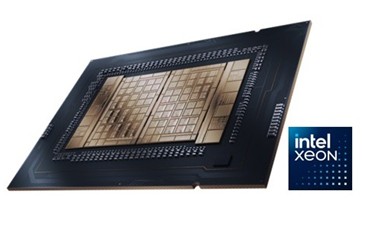

Strengths of the Intel® Xeon® 6 6760P Granite Rapids Processor:

• 64 Cores, 128 Threads, Base Frequency 2.2 GHz, Max 3.8 GHz, TDP 330W
• 4 x higher Performance Energy Efficiency
• Modern Workloads
• Increased Reliability and Uptime
• Enhanced Hardware-based Security

7STARLAKE’s modular data center, powered by the NVIDIA RTX™ PRO 6000 Tensor Core GPU, delivers exceptional compute density, resilience, and deployment flexibility for military and defense operations. Engineered for high-performance AI, simulation, and real-time analytics, the RTX PRO 6000 provides the Tensor, CUDA, and RT core capabilities required to accelerate mission-critical workloads such as ISR processing, battlefield simulation, autonomous systems development, and secure edge inference. Its workstation-class reliability and deterministic performance make it well suited for ruggedized, rapidly deployable modular environments where space, power, and latency constraints are paramount. By integrating RTX PRO 6000 GPUs, modular data centers can deliver scalable, GPU-accelerated computing at the tactical edge, enabling faster decision-making, enhanced situational awareness, and operational superiority in contested environments.

Most liquid cooling solutions are using close loop design — Direct to Chip (D2C) integrated pump & cold plate in the system. Users may worry about potential risk of liquid leakage.

7Starlake highly values system reliability. In the pursuit of stability and power, our experienced team has successfully optimized the thermal design, bringing out an unprecedented model AV2000. Instead of normal D2C design, 7Starlake innovated an unique heat exchanger integrating Conduction-Over-Liquid Cold Plate on the computing system.

2TB NVMe RAID 1

The AV2000 supports NVMe RAID controllers designed for professional applications that require bootable storage, host-level RAID redundancy, and native in-box driver support.

The AV2000 is engineered to maximize host platform uptime while simplifying the integration and maintenance of NVMe RAID storage. A broad range of solution options is available for professional VARs, including configurations with two or four dedicated M.2 device ports, integrated RAID 0, RAID 1, and JBOD support, optional out-of-band (OOB) management independent of the operating system, LED indicators for RAID status and I/O activity, and comprehensive management through UEFI, BIOS, CLI, and GUI interfaces.
